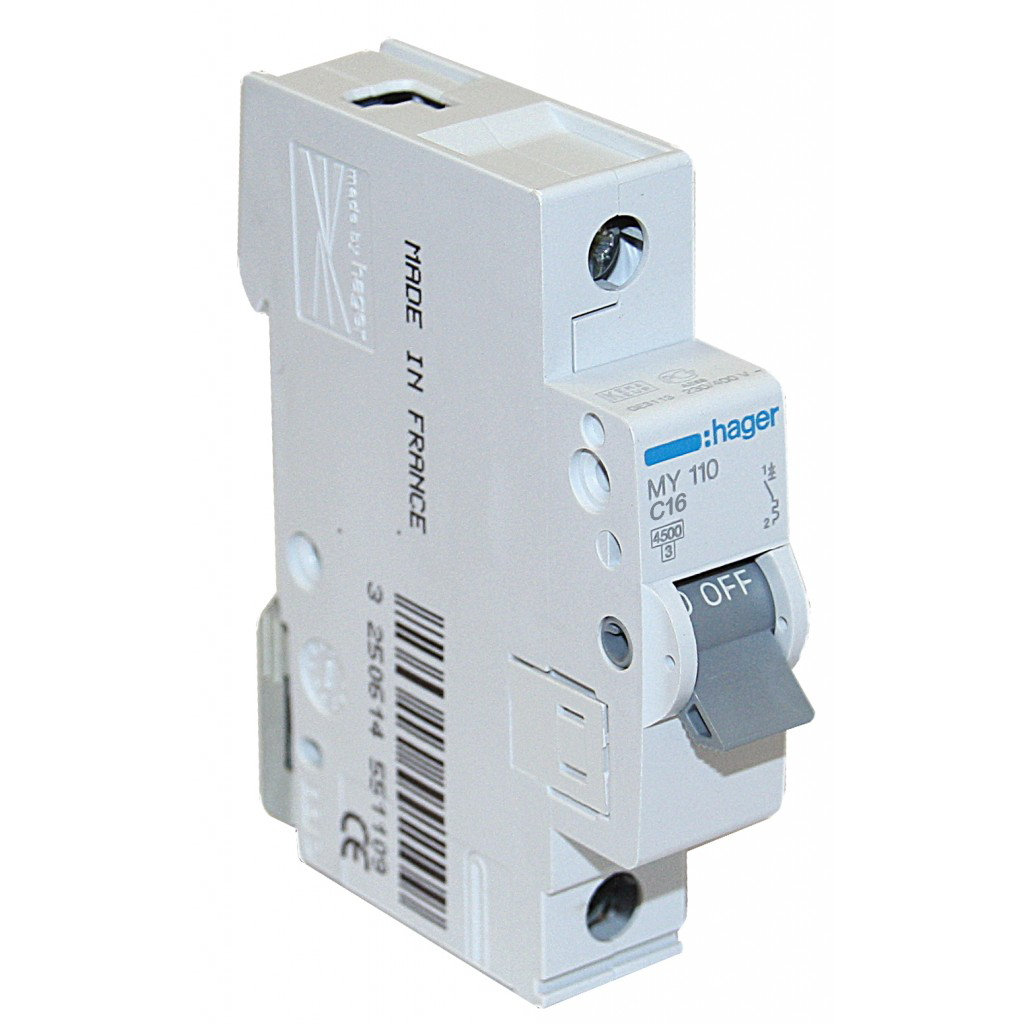

MY116 | MCB 1P 4.5kA C-16 A 1M
MY116 | MCB 1P 4.5kA C-16 A 1M
-
Rating current 50°C9 A
-
Rating current 55°C8.63 A
-
Rating current 60°C8.33 A
-
Rating current 65°C8.03 A
-
Rating current 70°C7.73 A
Original price was: 210.00 EGP.178.50 EGPCurrent price is: 178.50 EGP.
Description
MY116 | MCB 1P 4.5kA C-16 A 1M
Architecture
-
Number of protected poles1
-
Number of poles1 P
-
Type of pole1 P
-
CurveC
Functions
-
Concurrently switching N-neutralNo
Configuration
-
Number of modules1
Connectivity
-
Top connection alignement for modular devicesAligned terminal
-
Bottom connection alignement for modular devicesAligned terminal
Main electrical features
-
Rated short circuit breaking capacity Icn AC according IEC60898-14.5 kA
-
Rated operational voltage Ue230 / 400 V
-
Type of supply voltageAC
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage500 V
-
Rated impulse withstand voltage4000 V
Electric current
-
Rated current10 A
-
Rated service breaking capacity Ics AC according IEC 60898-14.5 kA
-
min/maxi threshold value of the AC thermal operation1.13 / 1.45 In
-
Magnetic regulating currrent5 / 10 In
-
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-14.5 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-24.5 kA
Electric current / temperature
-
Rating current -25°C13.4 A
-
Rating current -20°C13.1 A
-
Rating current -15°C12.8 A
-
Rating current -10°C12.54 A
-
Rating current -5°C12.21 A
-
Rating current 0°C11.91 A
-
Rating current 5°C11.61 A
-
Rating current 10°C11.31 A
-
Rating current 15°C11.01 A
-
Rating current 20°C10.72 A
-
Rating current 25°C10.42 A
-
Rating current 30°C10 A
-
Rating current 35°C9.82 A
Additional information
| Brands | Hager |
|---|
