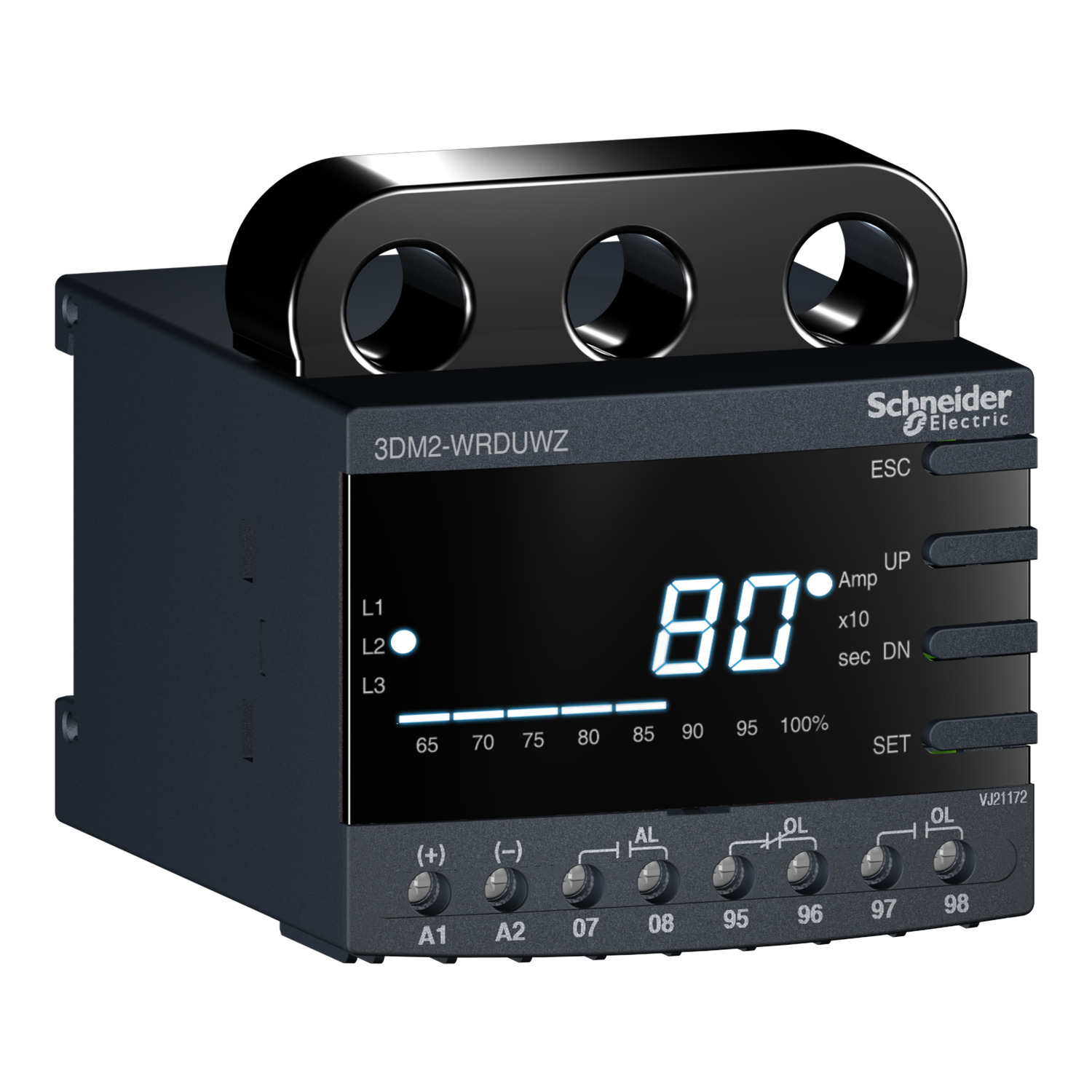

Schneider 3MZ2-WRDUWZ | Protection relay, EOCR Digital, 0.5 to 60A, 100 to 240VAC/DC, window connt, for motor protection

Description

The Schneider Electric EOCR Digital Protection Relay is an electronic motor protection device designed to provide reliable monitoring and protection for electric motors against abnormal current and operating conditions. It supports a current setting range from 0.5 to 60A and operates with a wide 100–240VAC/DC control supply, making it suitable for a broad range of industrial motor-control applications. The window-type current sensing design allows the motor conductors to pass directly through the relay for practical and compact current monitoring.

The EOCR Digital range is designed to help protect motors against conditions such as overload, phase loss, phase imbalance, locked rotor, short circuit, and earth fault, depending on the relay configuration. Digital monitoring and trip-cause indication help operators identify faults quickly and reduce troubleshooting time.

Its electronic design provides accurate motor-current supervision while offering easy configuration and reset options for motor protection systems. Schneider Electric lists manual, electrical, and automatic reset capabilities within this EOCR Digital platform.

Applications

Industrial electric motor protection

Pumps and pumping systems

Fans and ventilation equipment

Compressors

Conveyors and material-handling systems

Manufacturing and production machinery

Motor Control Centers (MCCs)

Industrial control panels and automation systems

Key Features

Adjustable motor current range from 0.5 to 60A

Wide 100–240VAC/DC operating supply

Digital electronic motor protection

Window-type current sensing connection

Protection against overload and abnormal motor operating conditions

Phase-loss and phase-unbalance monitoring

Locked-rotor protection

Earth-fault and short-circuit protection on applicable configurations

Digital fault and trip-cause indication for easier troubleshooting

Easy configuration for industrial motor applications

Multiple reset options including manual, electrical and automatic reset

Compact solution suitable for MCCs and motor control panels
