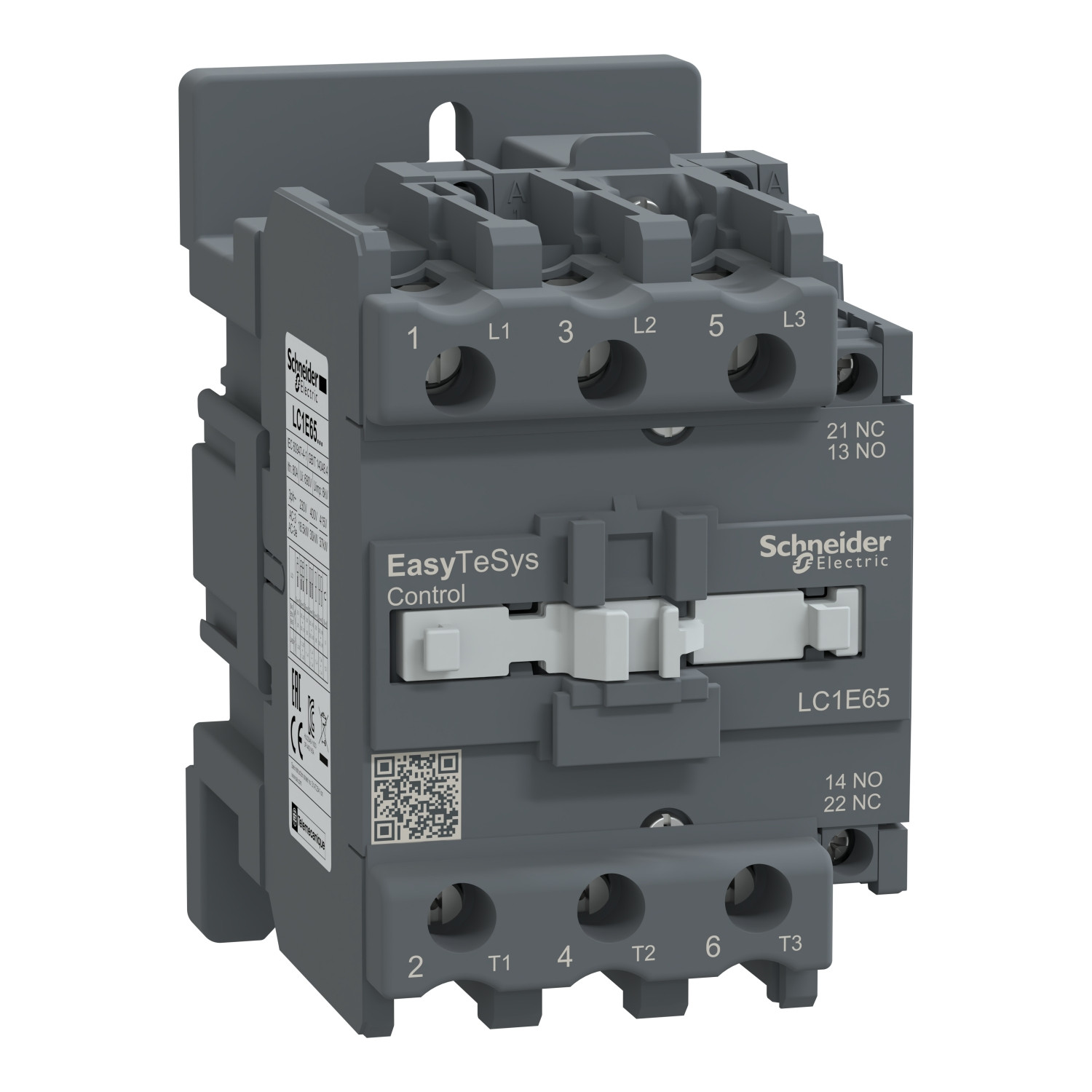

Schneider LC1E65M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 65A – 220 V AC coil
High performance under AC-3 motor duty, supporting motors up to 37 kW.
Exceptional durability, with millions of mechanical cycles for long service life.
Reliable switching capacity, ensuring stability even under high inrush currents.
Fast and flexible installation, compatible with both DIN-rail and panel mounting.
Trusted Schneider Electric quality, meeting global electrical safety standards.
Original price was: 7,095.13 EGP.3,846.00 EGPCurrent price is: 3,846.00 EGP.
Description
Schneider LC1E65M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 65A – 220 V AC coil
Description
The Schneider Electric LC1E65M7 is a three-pole contactor from the Easy TeSys series, designed for reliable motor control and switching of industrial loads. It comes with 3 normally-open (3 NO) power contacts and is rated for AC-3 motor duty up to 65 A at 440 V, making it suitable for starting and stopping three-phase induction motors. The device operates with a 220 V AC control coil, allowing seamless integration into standard electrical control circuits. Built with robust mechanical design and high electrical endurance, it ensures dependable performance in harsh industrial environments.
Technical Specifications
Poles: 3P (3 NO power contacts)
Utilization Category: AC-3 / AC-3e
Operational Voltage (Ue): Up to 690 V AC, 50/60 Hz
Rated Operational Current (Ie): 65 A at 440 V AC (AC-3 duty)
Rated Thermal Current (Ith): 80 A at 55°C
Motor Power Rating: Up to approximately 37 kW at 440 V AC
Insulation Voltage (Ui): 690 V (IEC 60947-4-1)
Withstand Short-Time Current: e.g., 520 A for 10 s, 260 A for 60 s
Making Capacity: Approx. 650 A at 440 V AC
Breaking Capacity: Approx. 520 A at 440 V AC
Mechanical Durability: Around 5,000,000 operating cycles
Electrical Durability (AC-3): Around 900,000 operating cycles
Mounting Method: DIN-rail or panel mounting
Terminals: Screw-clamp terminals
Approximate Dimensions: 127 mm height, 75 mm width, 114 mm depth
Approximate Weight: 0.98 kg
Coil Voltage: 220 V AC (50/60 Hz)
Key Features
Suitable for switching and controlling three-phase motors under heavy-duty AC-3 conditions.
Compact and robust design ideal for industrial control panels.
High mechanical and electrical endurance for long-term reliability.
Easy wiring and installation with screw terminals and versatile mounting options.
Fully compliant with international standards to ensure safety and performance.
Typical Applications
Motor control for pumps, fans, compressors, and industrial machinery
HVAC systems and ventilation units
Industrial lighting and resistive load switching
Power distribution and control panels
Automation systems requiring frequent start/stop operations
