Full Product Name:

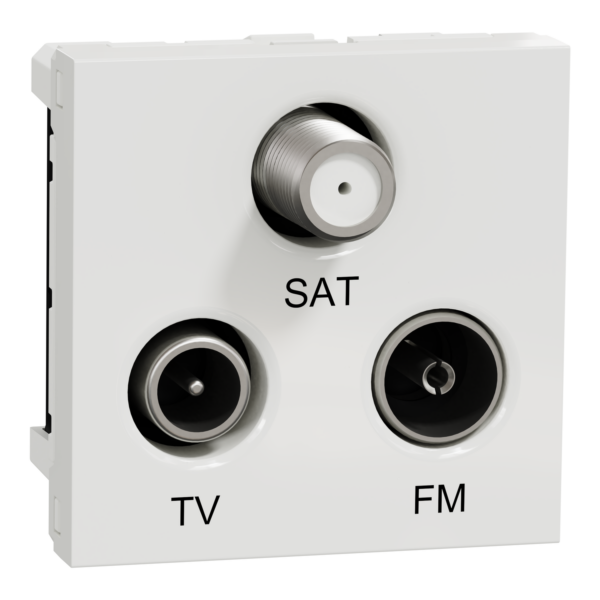

Schneider Electric NU345018
TV/FM/SAT Socket – New Unica Series, 2 Modules, Male IEC 9.52 mm, IP20, White

Detailed Specifications:

1. Product Type:

   • This is a TV/FM/SAT socket mechanism, designed for receiving and distributing television (TV), FM radio, and satellite (SAT) signals.

   • It combines all three signal types into a single, organized outlet point.

2. Socket Type & Connection:

   • Equipped with 3 separate connectors:

     • TV (Television) – Male IEC connector (9.52 mm)

     • FM (Radio) – Typically also a male or coaxial connector

     • SAT (Satellite) – F-type connector

   • The male IEC 9.52 mm connector is a standard for many TV and FM inputs in Europe.

3. Series Compatibility:

   • Belongs to Schneider’s New Unica series, known for its modular design, modern aesthetics, and easy installation.

   • Works with New Unica frames and support plates.

4. Module Size:

   • This mechanism takes up 2 modules in a New Unica modular frame.

   • Designed for flexibility and integration with other functions like power sockets or data outlets.

5. Color and Design:

   • Finished in white, giving a neutral, clean look that blends well with most wall colors and décor.

   • Matches other white components in the New Unica range for visual consistency.

6. Ingress Protection Rating (IP20):

   • Rated IP20, which means:

     • Protection against solid objects over 12 mm (like fingers)

     • Not protected against water, so it is intended for indoor, dry environments only.

7. Installation:

   • Installed in standard wall boxes compatible with New Unica systems.

   • Requires correct cable connections from antenna and satellite sources.

   • Should be installed by a qualified technician for proper signal distribution and grounding.

8. Application:

   • Ideal for:

     • Homes with combined TV/Satellite/FM systems

     • Apartments or villas using shared or individual antennas

     • Offices and hospitality spaces with media distribution
