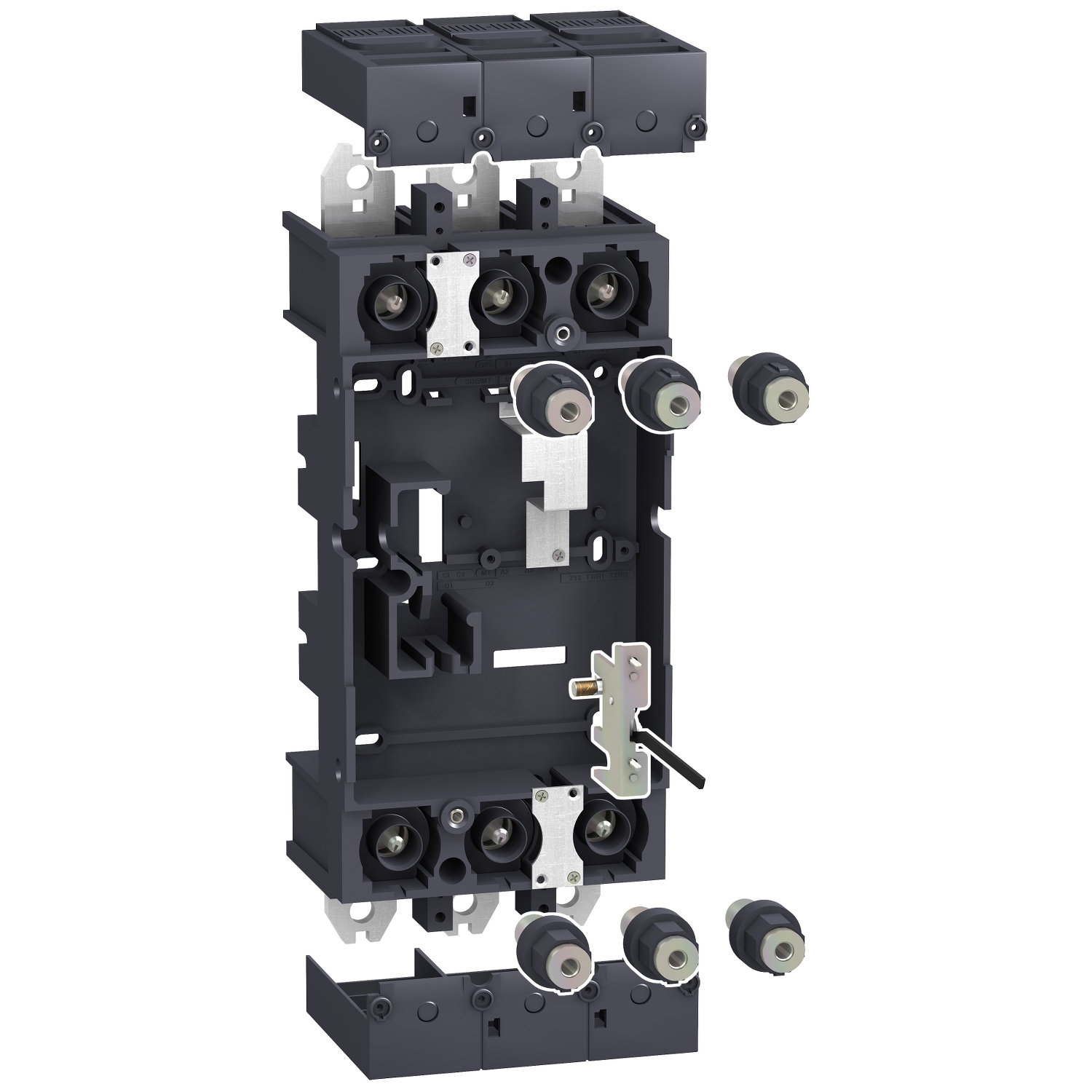

Schneider LV432538 | plug-in kit, ComPact NSX 400/630, 3 poles

Product Name:

Schneider LV432538 – Plug-in Kit
For: ComPacT NSX400 / NSX630
Poles: 3 poles

1. Overview:

The Schneider LV432538 is a plug-in mounting kit designed for ComPacT NSX400 and NSX630 molded case circuit breakers (MCCBs). It enables quick and easy insertion/removal of the circuit breaker from its base without disconnecting the cables, improving flexibility in maintenance and replacement operations.

This version is designed for 3-pole breakers (L1, L2, L3), typically used in 3-phase systems.

2. Key Specifications:

3. Functionality and Benefits:

• Tool-Free Removal/Installation:
  Allows the circuit breaker to be plugged in or removed without disturbing power cables, reducing downtime during maintenance.

• Time-Saving:
  Especially useful in applications where breakers may need to be frequently replaced or inspected, such as in industrial systems or modular panels.

• Safe & Clean Maintenance:
  Ensures that power cables remain connected to the base, minimizing handling of live conductors and increasing safety.

• Pre-wiring Capability:
  Cables can be installed and tested before the breaker is installed, improving installation efficiency.

4. Applications:

• Industrial Electrical Panels

• Motor Control Centers (MCCs)

• Power Distribution Boards

• Systems Requiring Quick Breaker Swapping

• Critical Infrastructure Panels where downtime must be minimal

5. Construction and Installation:

• Two-Part System:

  • Base unit: Permanently installed in the panel and wired.

  • Breaker unit: Easily plugged into or removed from the base.

• Mechanical Guides and Locks:
  Ensures correct alignment, secure connection, and safe operation.

• Optional Accessories Compatible:
  Can be used alongside auxiliary contacts, motor mechanisms, and other ComPacT NSX accessories.

6. Summary:

The Schneider LV432538 is a plug-in kit for 3-pole ComPacT NSX400 and NSX630 circuit breakers. It allows for quick insertion and removal of the breaker without disturbing existing wiring, making it ideal for modular panels, maintenance-intensive environments, and critical systems where fast and safe access to the breaker is essential.
