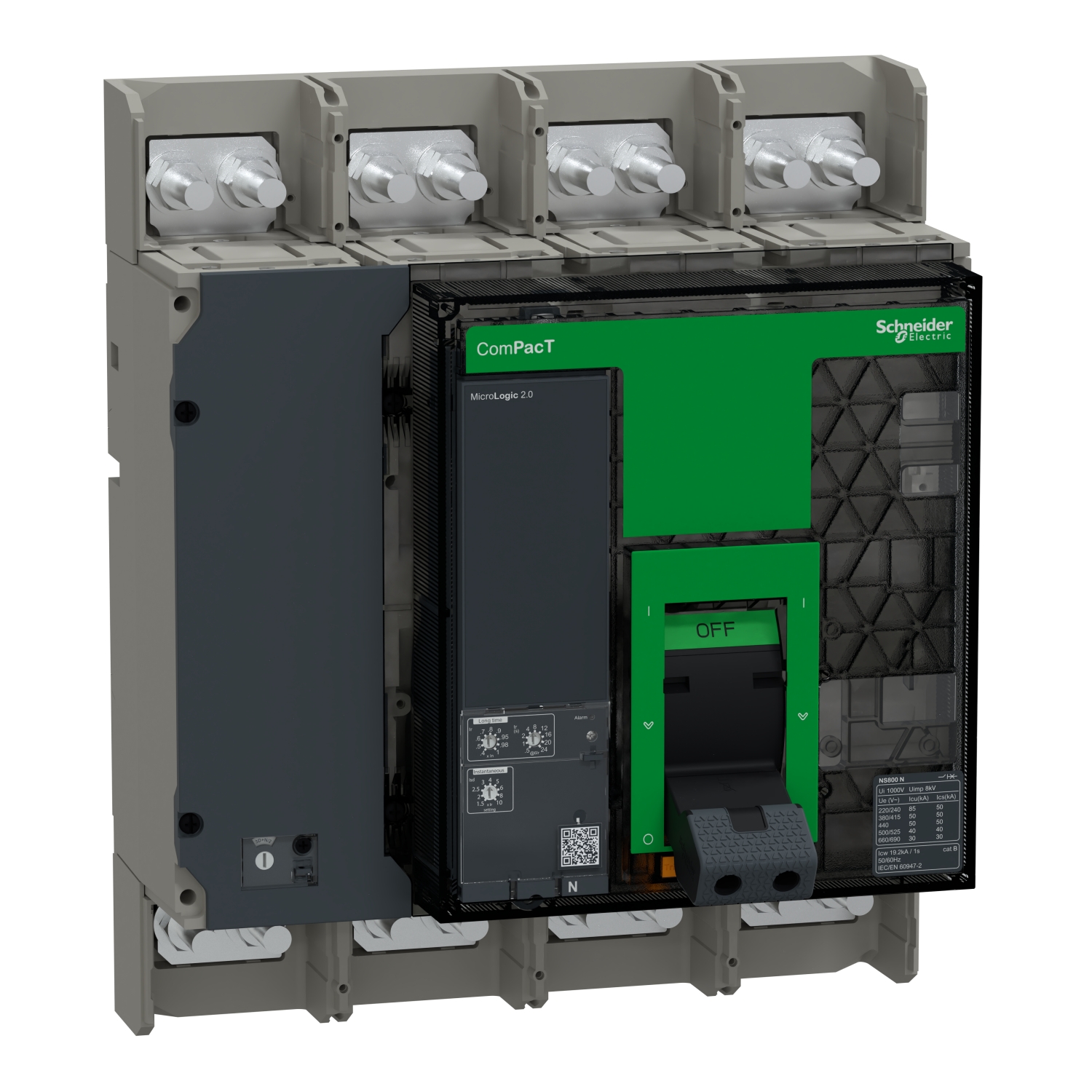

Schneider C080N420FM | Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

Schneider C080N420FM | Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

Technical Specifications C080N420FM

• Brand: Schneider Electric

• Catalog Number: C080N420FM

• Series: ComPacT NS800N

• Product Type: Molded Case Circuit Breaker (MCCB)

• Rated Operational Current (In): 800 Amperes

• Number of Poles: 4P (Three phases + neutral)

• Breaking Capacity: 50 kA at 415 VAC

• Rated Operational Voltage (Ue): Up to 690 VAC

• Rated Insulation Voltage (Ui): 800 VAC

• Control Unit Type: MicroLogic 2.0 (electronic trip unit)

• Mounting: Fixed

• Operation Mode: Manual

• Standard Compliance: IEC 60947-2

• IP Protection Rating: IP40 (when properly enclosed)

•

Key Features:

• MicroLogic 2.0 trip unit ensures high precision in overload and short-circuit protection.

• 4-pole design provides comprehensive circuit protection including neutral line.

• Robust short-circuit breaking capacity of 50kA at 415VAC makes it suitable for demanding electrical environments.

• Manually operated with fixed installation, ideal for straightforward integration in main switchboards.

• Modular construction compatible with accessories like motorized operation, auxiliary contacts, and communication interfaces.

Typical Applications:

• Industrial main distribution boards handling high current loads and critical processes.

• Commercial buildings with complex electrical demands (malls, office towers, hotels).

• Critical infrastructure facilities such as data centers, hospitals, and utility control rooms.

• Energy systems like solar farms, where stability and reliability are crucial.

• Heavy machinery panels in manufacturing or water treatment plants.
