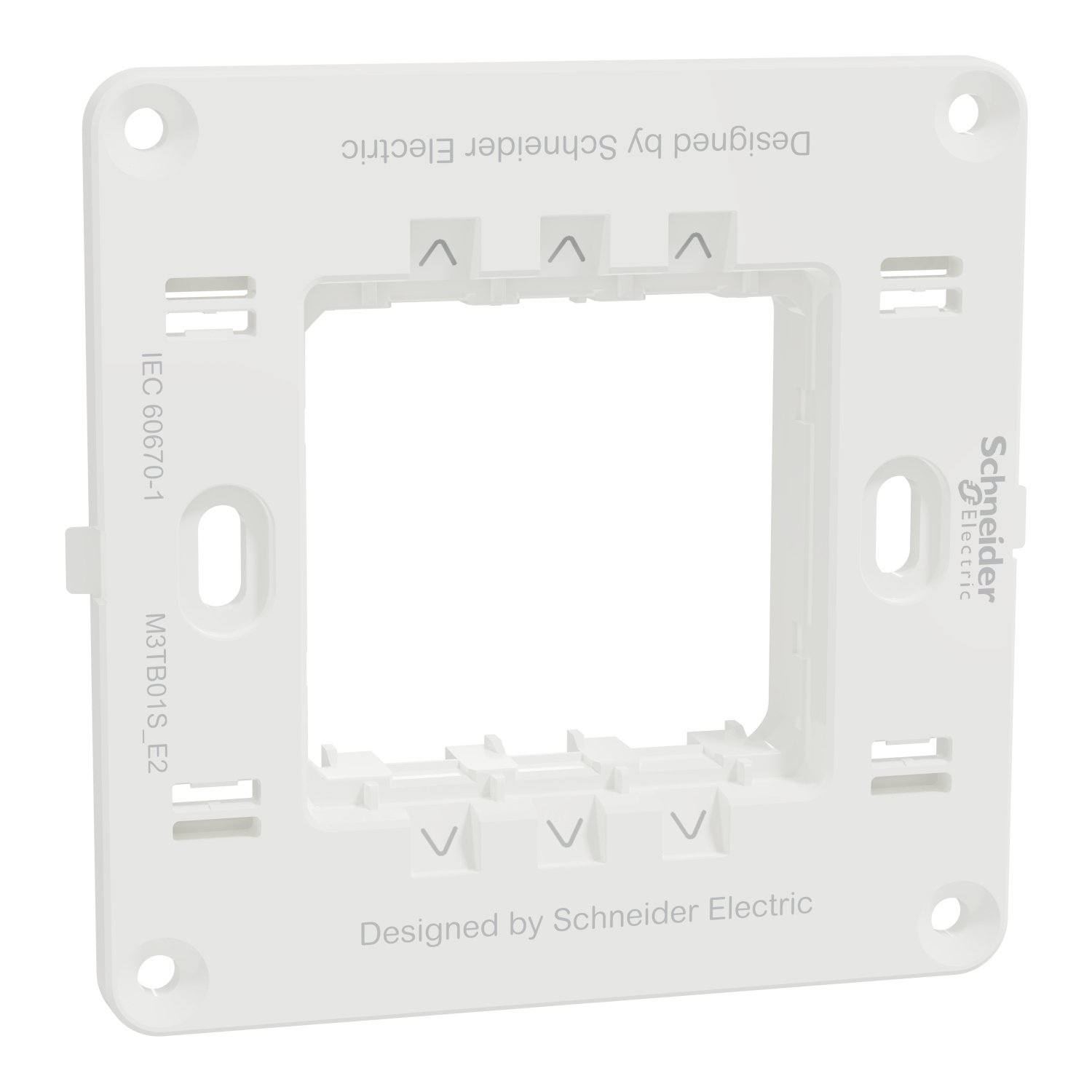

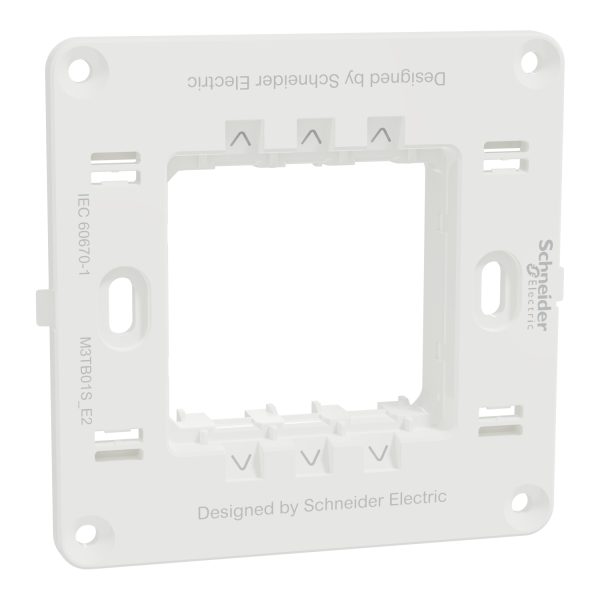

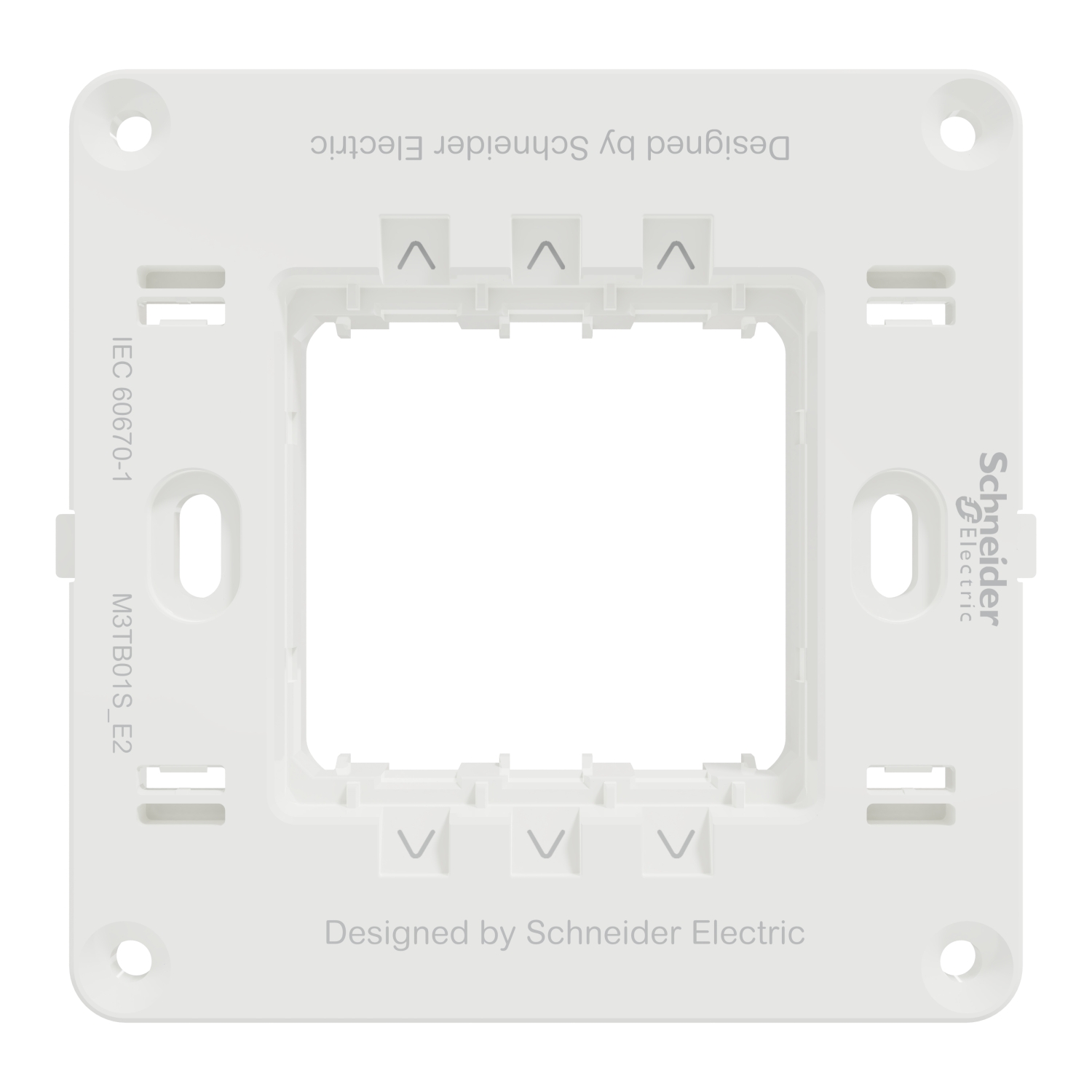

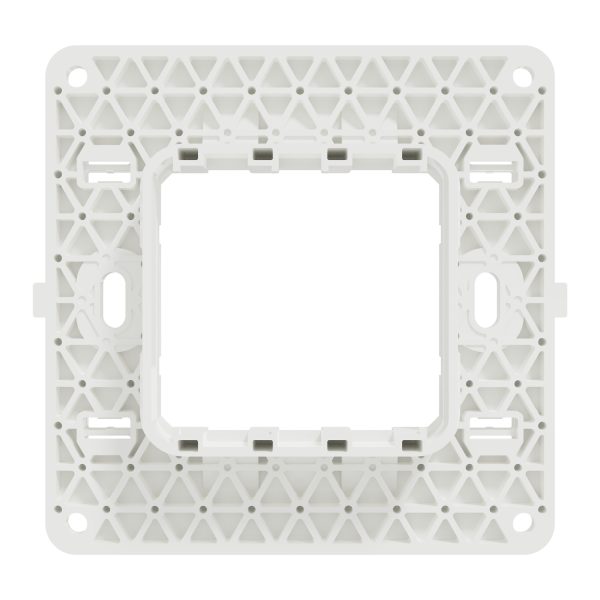

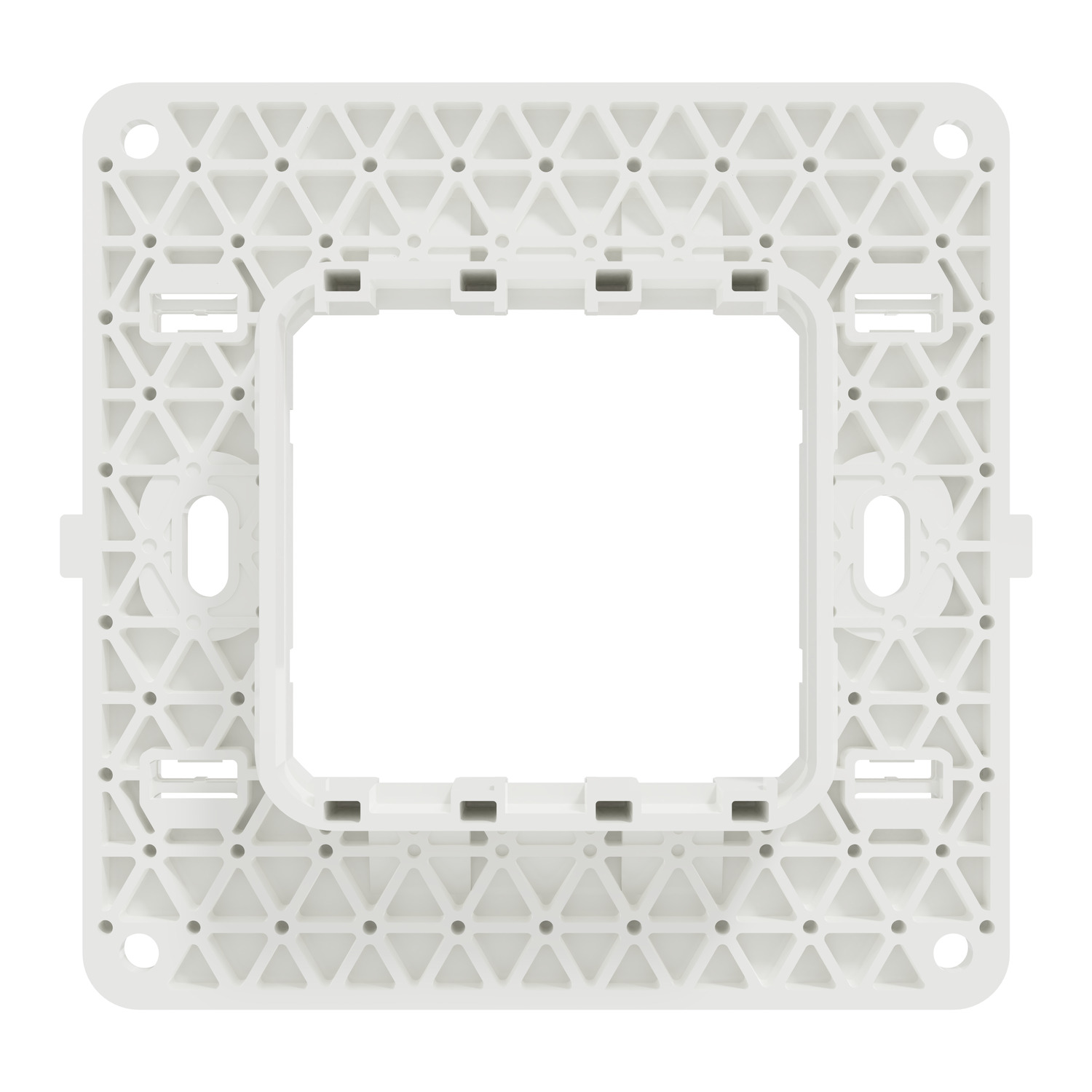

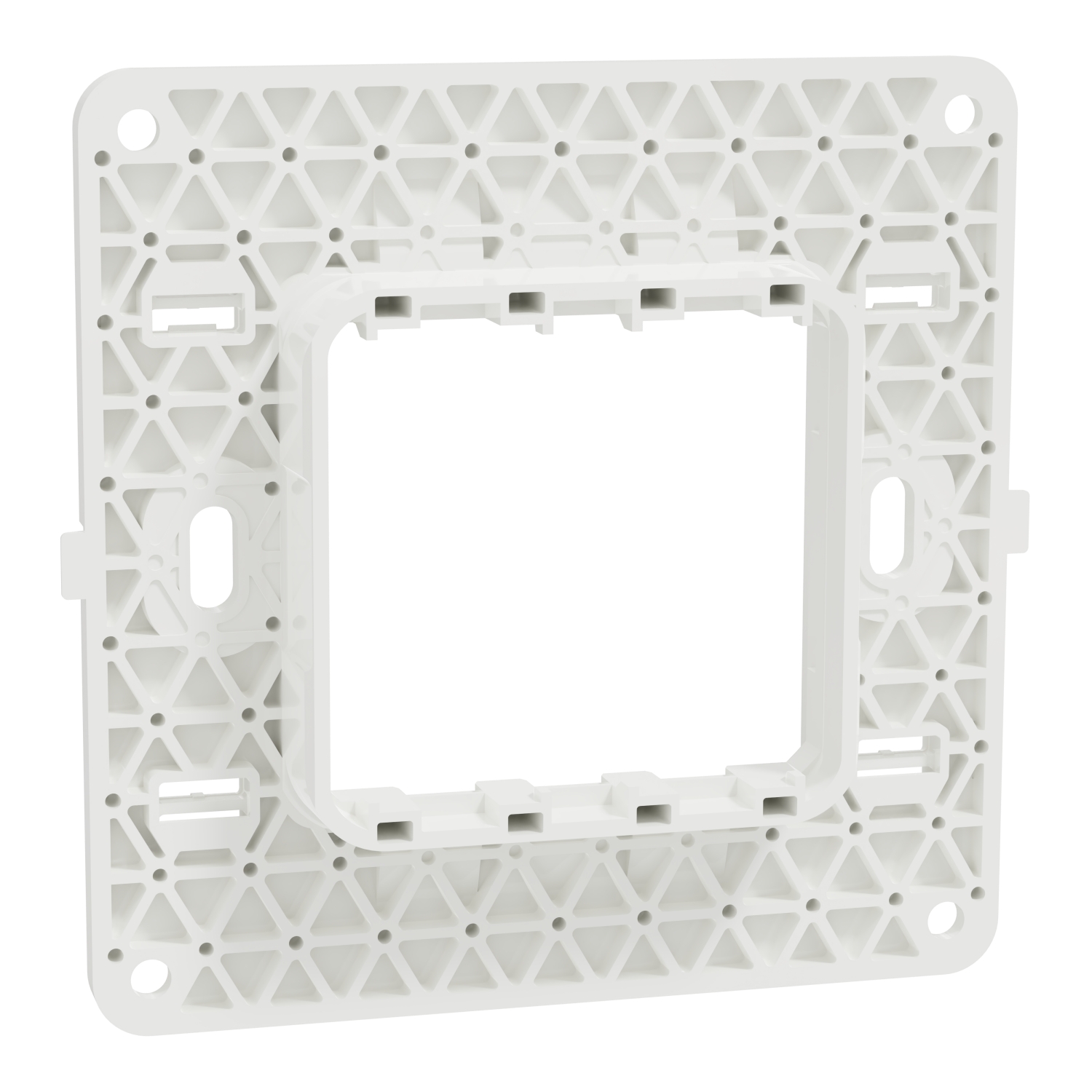

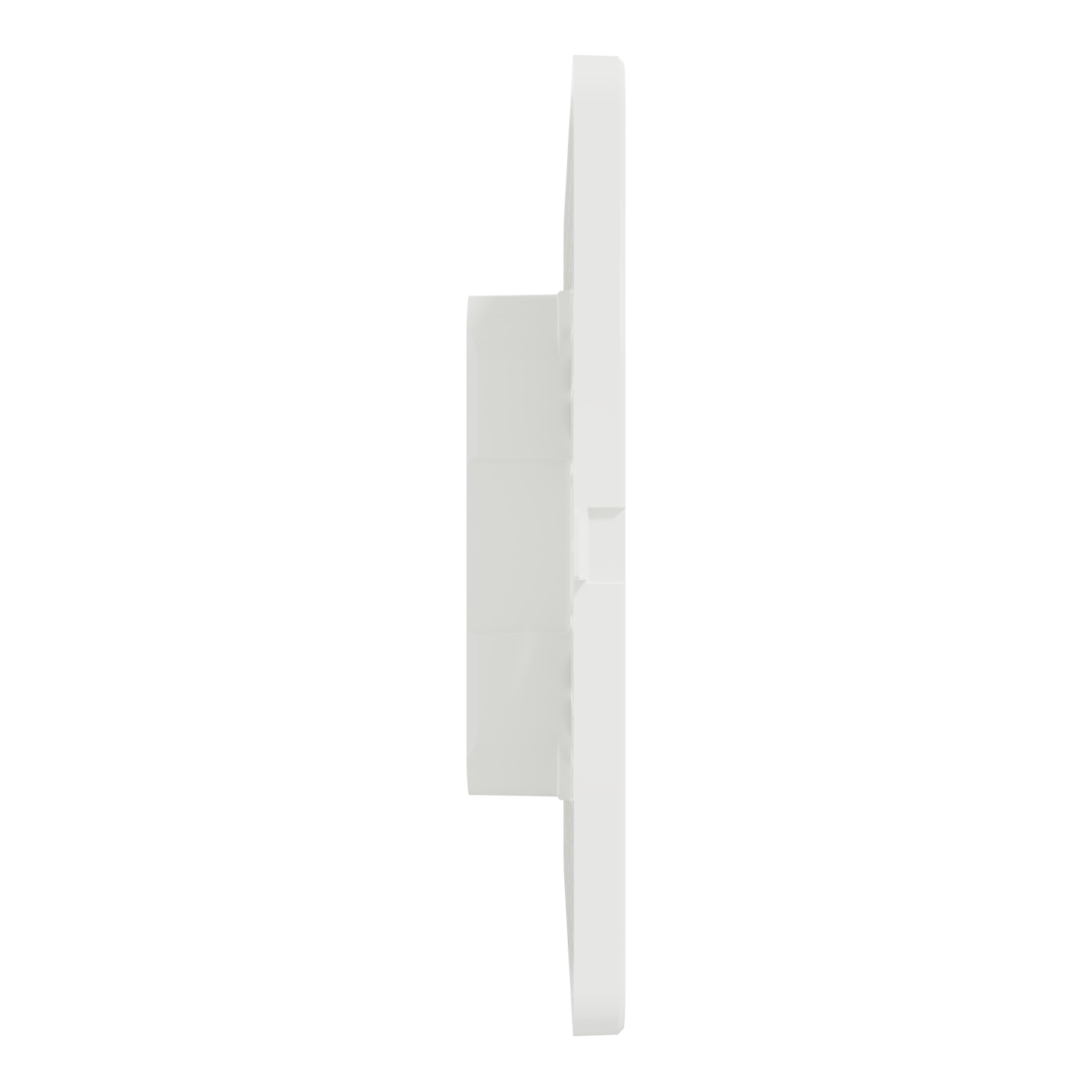

Schneider M3TB01S_E2 | Supporting Frame, Miluz E, 2 gang, white

Full Product Name:

Schneider Electric M3TB01S_E2
Supporting Frame – Miluz E Series, 2 Gang, White

Detailed Specifications:

1. Product Type:

   • This is a supporting frame (also called a mounting frame or grid).

   • It serves as the structural base that holds and aligns electrical modules (like switches, sockets, dimmers) inside the wall box and behind the cover frame.

2. Gang Configuration:

   • 2 Gang frame, designed to support two modular devices side by side.

   • Suitable for installations that require a combination of two modules (e.g., two switches, or one switch and one socket).

3. Function:

   • The supporting frame is mounted inside the wall box, and the electrical modules snap into it.

   • After installation, the cover frame is attached over it for a finished look.

   • It ensures the proper alignment, spacing, and secure mounting of the devices.

4. Color and Appearance:

   • Color: White, matching the rest of the Miluz E series for a consistent look.

   • Usually not visible after the cover frame is installed, but it plays a vital role in internal stability.

5. Series Compatibility:

   • Belongs to the Miluz E series from Schneider Electric.

   • Fully compatible with Miluz E modular switches, sockets, dimmers, and cover frames.

6. Installation:

   • Installs directly into standard wall mounting boxes.

   • Simple screw-based or snap-in installation depending on the wall box type.

   • The modules are clipped into the frame, ensuring a firm and precise fit.

7. Material and Durability:

   • Made from durable, heat-resistant plastic to ensure long-term performance and electrical safety.

   • Built to withstand the mechanical stress of regular installation and removal of devices.

8. Application:

   • Used in both residential and commercial electrical systems.

   • Essential for modular electrical installations where aesthetics, safety, and alignment matter.
